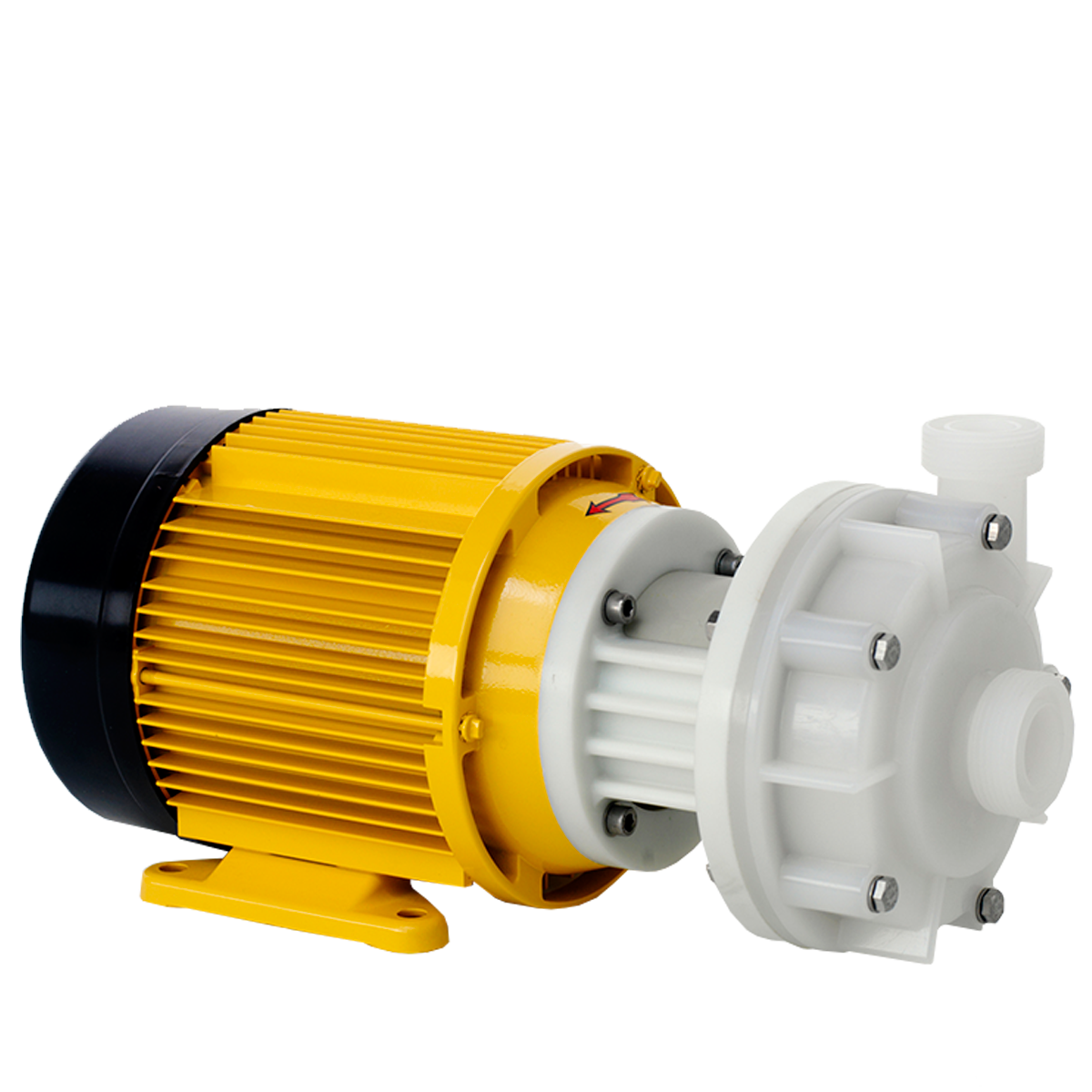

Seria U reprezinta modelul de baza pentru transportul mediilor agresive. La aceasta serie, puterea motorului este transmisa direct rotorului pompei printr-un arbore continuu (pompa tip bloc). O etansare radiala simpla, unsa si racita de mediul pompat, asigura etanseitatea pompei.
Reprezentant Tehnic Comercial
| Numar articol | Manson arbore ptr tipul U/UP/U-DO/UP-DO | Etansare arbore | Conexiune admisie | Inaltime de pompare max. [mCA] (mWS) | Adancime de imersie ptr tipul T, TE | Datele motorului | Conexiune refulare | Material rotor | Putere motor [kW] | Termistor PTC, ptr instalare variator de frecventa | Tip | Material etansare carcasa | Debit max. [l/min] (l/min) | Material carcasa | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01216121
Pompa centrifugala Tip SCHMITT / U 80-PVDF-C/HC |
hastelloy C | GLRD cÃrbune/ceramicÃ/EPDM/HC | DN 10 - G 3/4" filet ext | 4 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 10 - G 3/4" filet ext | PVDF | 0,18 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | EPDM | 46 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01312211
Kreiselpumpe Typ SCHMITT / U 101-PVDF-A/HC |
hastelloy C | GLRD PTFE/ceramicÃ/FPM/HC | DN 15 - G 1" filet ext | 6,5 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 15 - G 1" filet ext | PVDF | 0,18 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | viton | 83 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01314111
Pompa centrifugala Tip SCHMITT / U 101-PVDF-B/HC |
hastelloy C | GLRD cÃrbune/ceramicÃ/FPM/HC | DN 15 - G 1" filet ext | 6,5 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 15 - G 1" filet ext | PVDF | 0,18 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | viton | 83 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01316431
Pompa centrifugala Tip SCHMITT / U 100-PVDF-C/HC |
– | GLRD SiC/SiC/FEP/HC | DN 15 - G 1" filet ext | 7 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 15 - G 1" filet ext | PVDF | 0,18 kW, | fÃrà conductor ptr variator de frecven¯Ã | Schmitt U | FEP | 80 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01415231
Pompa centrifugala Tip SCHMITT / U 115-PVDF-C/E |
o¯el inoxidabil 1.4571 | lagÃr de alunecare PTFE /ceramicà | DN 15 - G 1" filet ext | 10 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 15 - G 1" filet ext | PVDF | 0,25 kW, | fÃrà conductor ptr variator de frecven¯Ã | Schmitt U | FEP | 105 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01511411
Kreiselpumpe Typ SCHMITT / U 130-PVDF-A/E |
o¯el inoxidabil 1.4571 | GLRD SiC/SiC/FPM/HC | DN 20 - G 1 1/4" filet ext | 14 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 15 - G 1" filet ext | PVDF | 0,55 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | viton | 140 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01616311
Pompa centrifugala magnetica Tip SCHMITT U 150/PVDF |
hastelloy C | GLRD cÃrbune/SiC/FPM/HC | DN 25 - G 1 1/2" filet ext | 16 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 20 - G 1 1/4" filet ext | PVDF | 1,1 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | viton | 284 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01710431
Pompa centrifugala Tip SCHMITT / U 170-PVDF-B/HC |
– | GLRD cÃrbune/SiC/FEP/HC | DN 32 - G 2" filet ext | 25 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 25 - G 1 1/2" filet ext | PVDF | 2,2 kW, | – | Schmitt U | FEP | 340 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01810431
Pompa centrifugala Tip SCHMITT / U 190-PVDF-B/HC |
– | GLRD cÃrbune/SiC/FEP/HC | DN 32 - G 2" filet ext | 32 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 25 - G 1 1/2" filet ext | PVDF | 3,0 kW, | – | Schmitt U | FEP | 370 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01813221
Kreiselpumpe Typ SCHMITT / U 190-PVDF-B/E |
o¯el inoxidabil 1.4571 | GLRD PTFE/ceramicÃ/EPDM/HC | DN 32 - G 2" filet ext | 32 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 32 - G 1 1/2" filet ext | PVDF | 5,5 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | EPDM | 370 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01911121
Pompa centrifugala Tip SCHMITT / U 210 PVDF A/C |
– | GLRD cÃrbune/ceramicÃ/EPDM/HC | DN 40 - G 2 1/4" filet ext | 40 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 32 - G 2" filet ext | PVDF | 5,5 kW, | cu conductor ptr variator de frecven¯Ã | Schmitt U | EPDM | 500 | PVDF |
Informatii suplimentare dupa autentificare
|
|
|
01915231
Pompa centrifugala Tip SCHMITT / U 210-PVDF-C/E |
o¯el inoxidabil 1.4571 | GLRD PTFE/ceramicÃ/FEP/HC | DN 40 - G 2 1/4" filet ext | 40 | Null | 230/400V, 50Hz, IP55, 2800 rpm | DN 32 - G 2" filet ext | PVDF | 5,5 kW, | fÃrà conductor ptr variator de frecven¯Ã | Schmitt U | FEP | 500 | PVDF |
Informatii suplimentare dupa autentificare
|
Seria U este o serie extrem de versatila si adaptabila pentru aplicatii universale. Datorita varietatii de executii si materiale disponibile, poate fi adaptata optim la o gama larga de medii de pompare si conditii de operare. Poate transporta solide cu dimensiuni de pana la 3 mm si pana la 10% volum, cu vascozitati de pana la 150 mPas. Temperatura maxima a mediului pompat este 95°C.
